A1A chassis with 12mm gauge bogies, for HOnz scale on 12mm gauge track (also known as HOn3.5).
Chassis comes fully assembled, wired for DC.
Features:

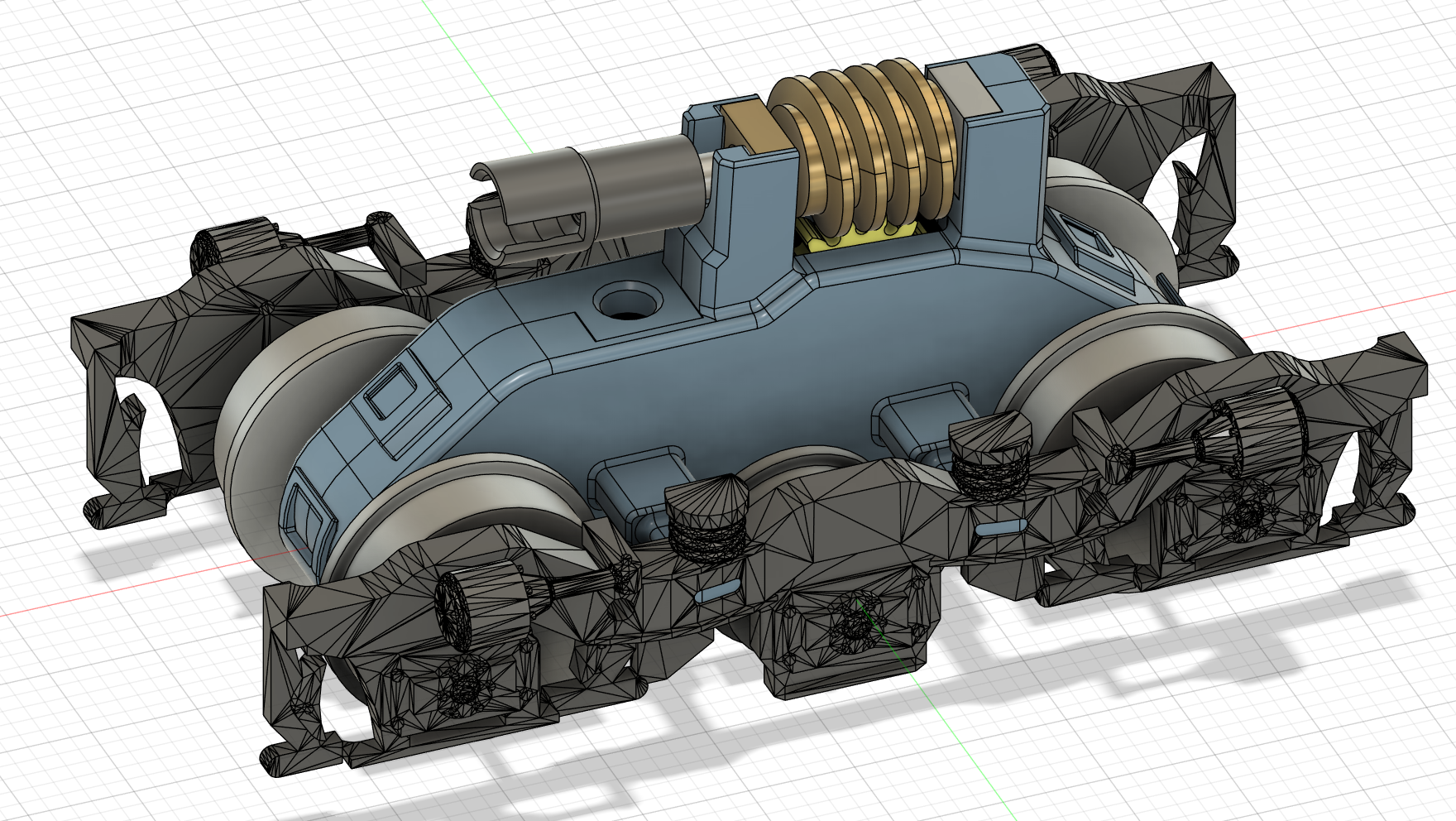

Accurately sized bogies, A-1-A arrangement (two powered axles, one “idler”)
Motor with dual flywheel
3D-printed aluminium chassis
Universal cardan drive for transmission
Chassis designed for:
NZR DA class locomotive (HOnz)
NZR DC class locomotive (HOnz)
NZR DBR class locomotive (HOnz)
Queensland Rail 1400 class locomotive (HOn3.5)
Canadian National G8 locomotive (HOn3.5)
Dimensions
Overall: 139mm long x 29.24mm high x 25.22mm wide
Height above rail: 27.24mm
Bogie pivot spacing: 77.73mm
Axle spacing: 15mm (driven axle - idler axle - driven axle)
Mounting spacing: four screws, two at the end of the chassis. 62.34mm between each end to the centre of the screw, 14.37mm apart.
Mounting screws: 4x M2, 9mm length screws required
Minimum running radius: 18" radius (457mm) minimum recommended radius
